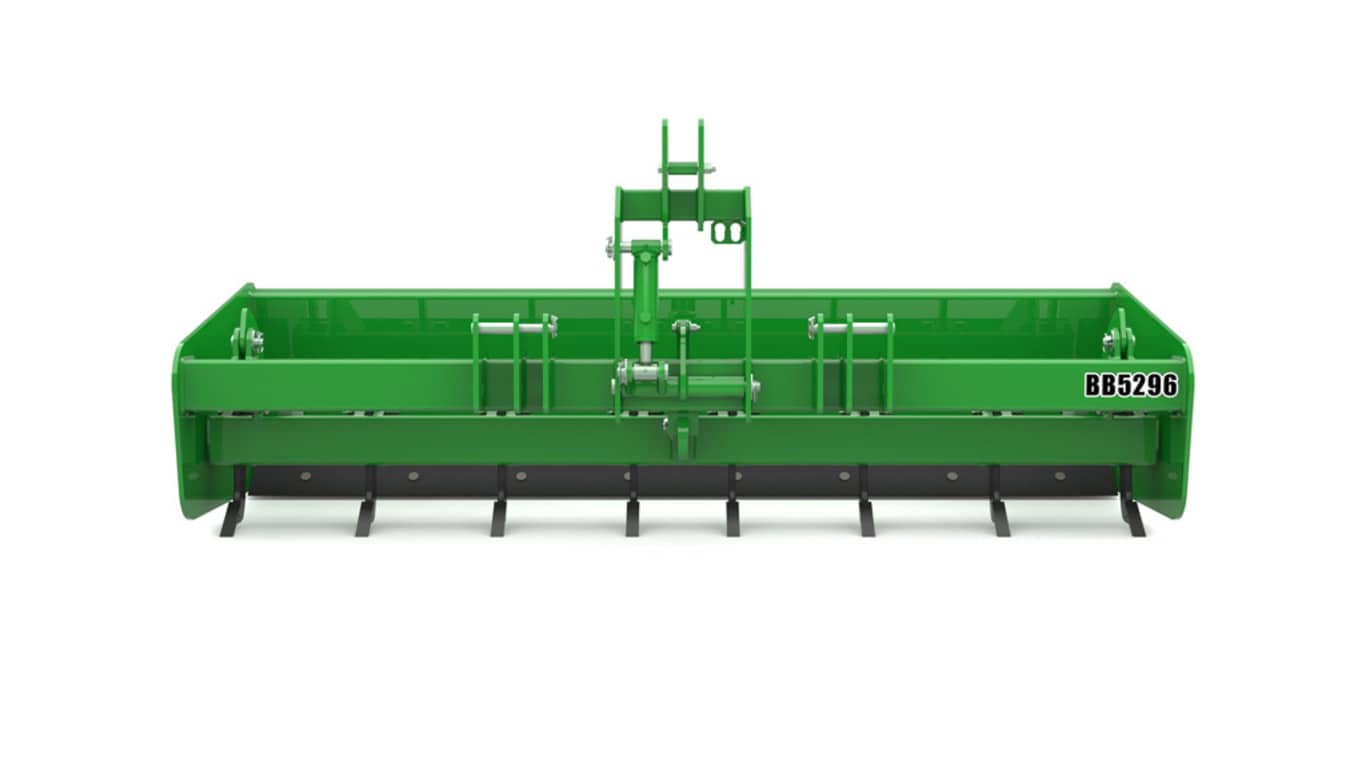

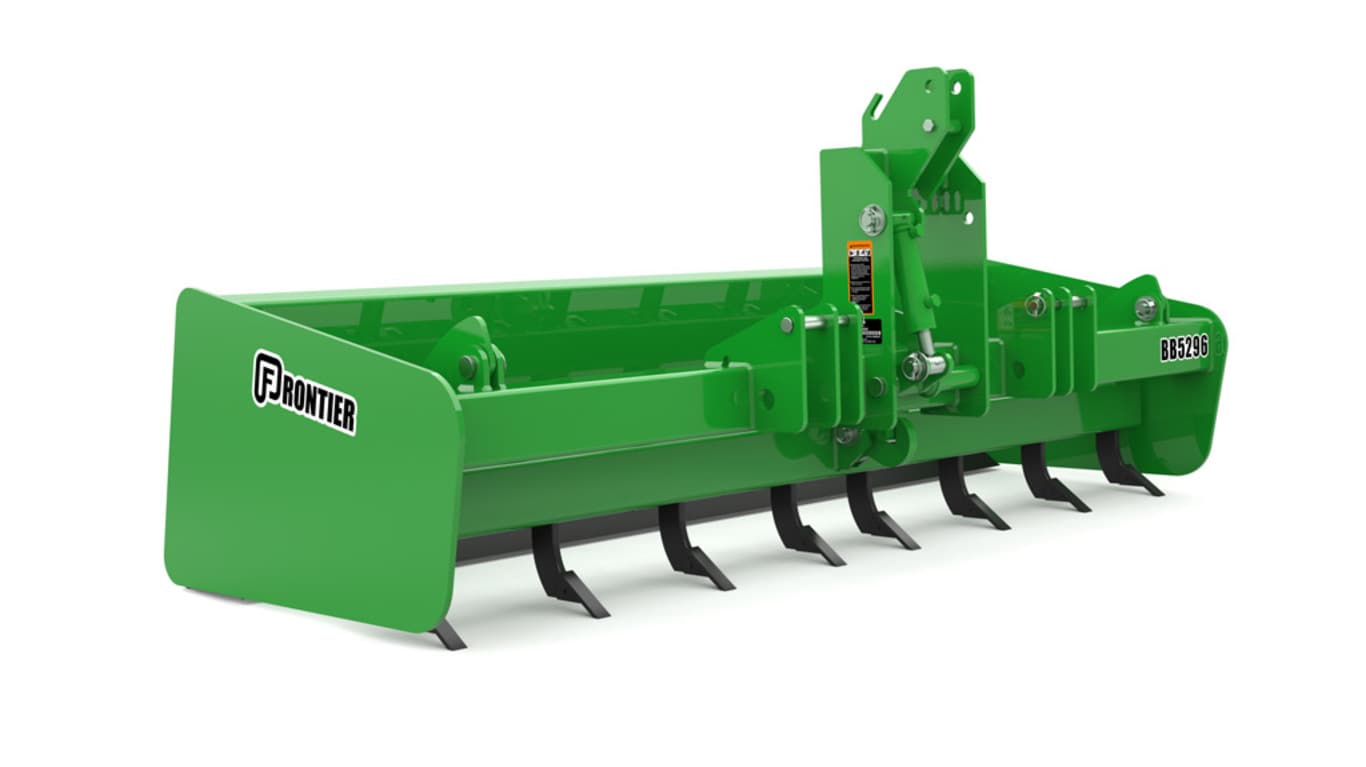

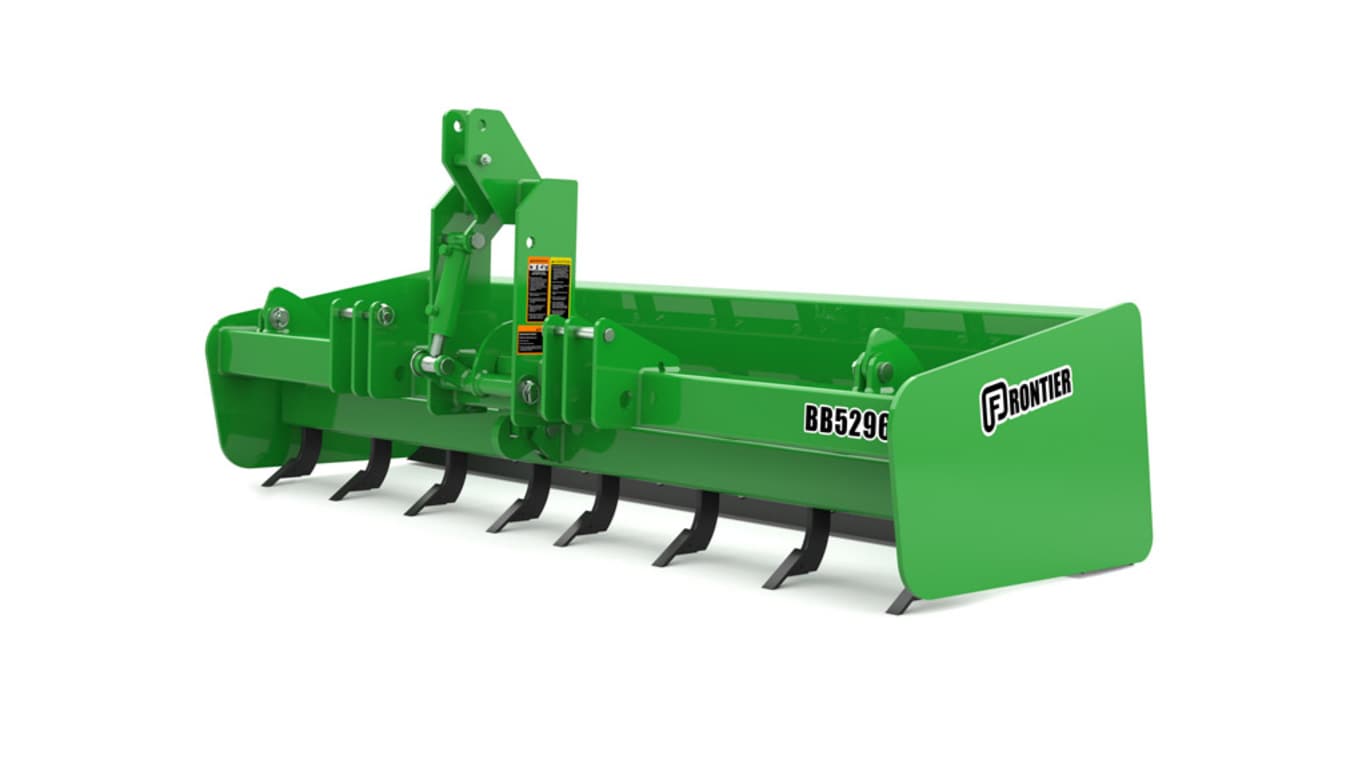

Replaceable heavy-duty scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The scarifiers work great for the purposes of chipping or deep digging.
Easy hitch connections
iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.
Precise leveling with steel cutting edge
Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.
Durable Solid Moldboard
A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.
Specs & Compare
Key Specs
Current Model
Working width
BB5272: 182.88 cm 72 in. BB5284: 213.36 cm 84 in. BB5296: 243.84 cm 96 in.
Cutting edge - Reversible
All BB52: Yes
Shank type
All BB52: Three position with holes
Hitch
Compatibility All BB52: Category 1 & 2 iMatch™ compatible (Cat. 1) All BB52: Yes
Max Engine Horsepower
All BB52: 86.48 kW 120 hp
PTO Horsepower
Dimensions
Working width
BB5272: 182.88 cm 72 in. BB5284: 213.36 cm 84 in. BB5296: 243.84 cm 96 in.
Unit height
All BB52: 99.06 cm 39 in.
Unit depth
All BB52: 81.28 cm 32 in.
Endplate thickness
All BB52: 1.27 cm 0.5 in.
Moldboard thickness
All BB52: 0.64 cm 0.25 in.
Weight
Operating weight
BB5272: 401.4 kg 885 lb BB5284: 442.3 kg 975 lb BB5296: 474.0 kg 1045 lb
Shipping
BB5272: 412.76 kg 910 lb BB5284: 453.59 kg 1000 lb BB5296: 485.34 kg 1070 lb
Tractor compatibility
Max Engine Horsepower
All BB52: 86.48 kW 120 hp
PTO Horsepower
Hitch
Compatibility
All BB52 Category 1 & 2
iMatch™ compatible (Cat. 1)
All BB52: Yes
Quick coupler (Cat. 2)
Box
Capacity
BB5272: 0.8 m3 28.42 cu ft BB5284: 0.94 m3 33.13 cu ft BB5296: 1.07 m3 37.85 cu ft
