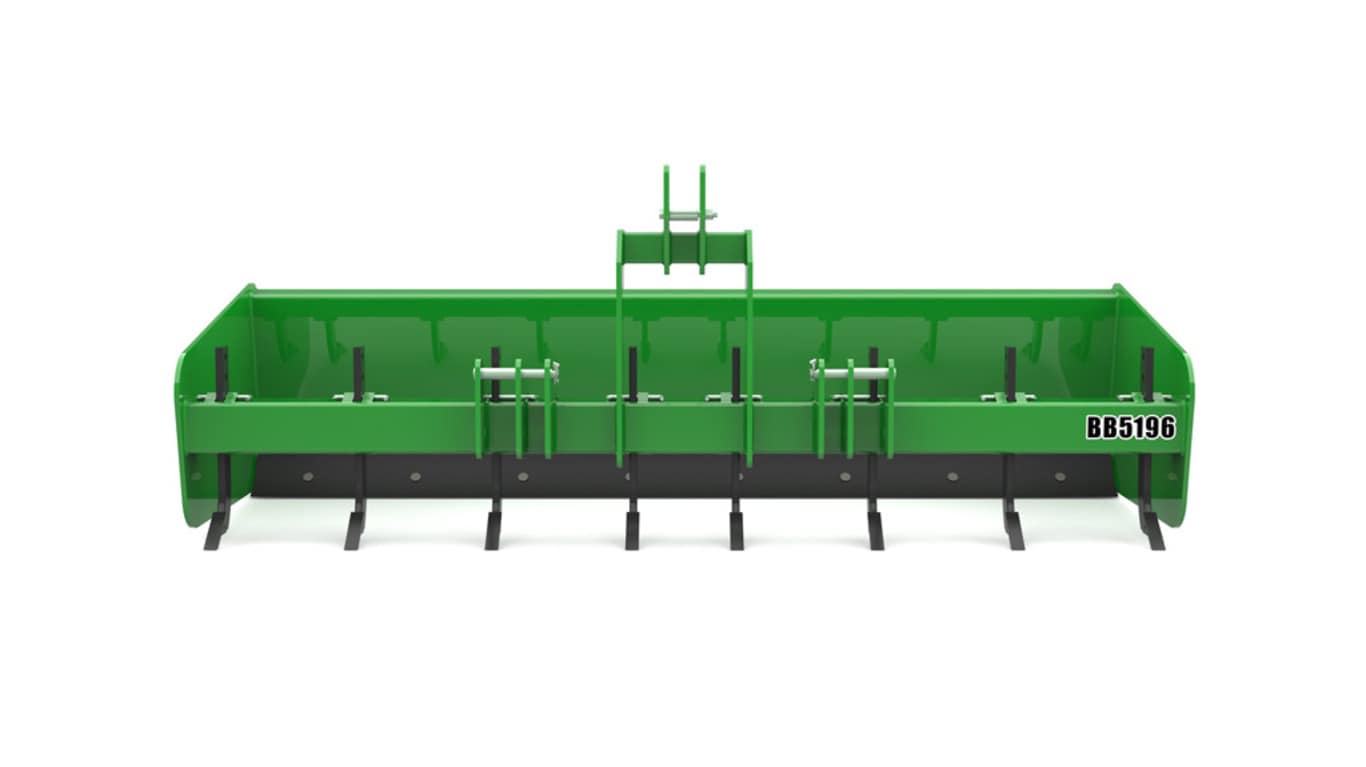

Replaceable heavy-duty scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The scarifiers work great for the purposes of chipping or deep digging.
Easy hitch connections
iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.
Precise leveling with steel cutting edge
Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.
Durable Solid Moldboard
A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.
Specs & Compare
Key Specs
Current Model
Working width
BB5172: 182.88 cm 72 in. BB5184: 213.36 cm 84 in. BB5196: 243.84 cm 96 in.
Cutting edge - Reversible
All BB51: Yes
Shank type
All BB51: Four position with holes
Hitch
Compatibility All BB51: Category 1 & 2 iMatch™ compatible (Cat. 1) All BB51: Yes
Max Engine Horsepower
All BB51: 86.48 kW 120 hp
PTO Horsepower
Dimensions
Working width
BB5172: 182.88 cm 72 in. BB5184: 213.36 cm 84 in. BB5196: 243.84 cm 96 in.
Unit height
All BB51: 91.44 cm 36 in.
Unit depth
All BB51: 81.28 cm 32 in.
Endplate thickness
All BB51: 1.27 cm 0.5 in.
Moldboard thickness
All BB51: 0.64 cm 0.25 in.
Weight
Operating weight
BB5172: 317.5 kg 720 lb BB5184: 362.9 kg 800 lb BB5196: 387.8 kg 855 lb
Shipping
BB5172: 337.92 kg 745 lb BB5184: 374.21 kg 825 lb BB5196: 399.16 kg 880 lb
Tractor compatibility
Max Engine Horsepower
All BB51: 86.48 kW 120 hp
PTO Horsepower
Hitch
Compatibility
All BB51: Category 1 & 2
iMatch™ compatible (Cat. 1)
All BB51: Yes
Quick coupler (Cat. 2)
Box
Capacity
BB5172: 0.8 m3 28.42 cu ft BB5184: 0.94 m3 33.13 cu ft BB5196: 1.07 m3 37.85 cu ft
