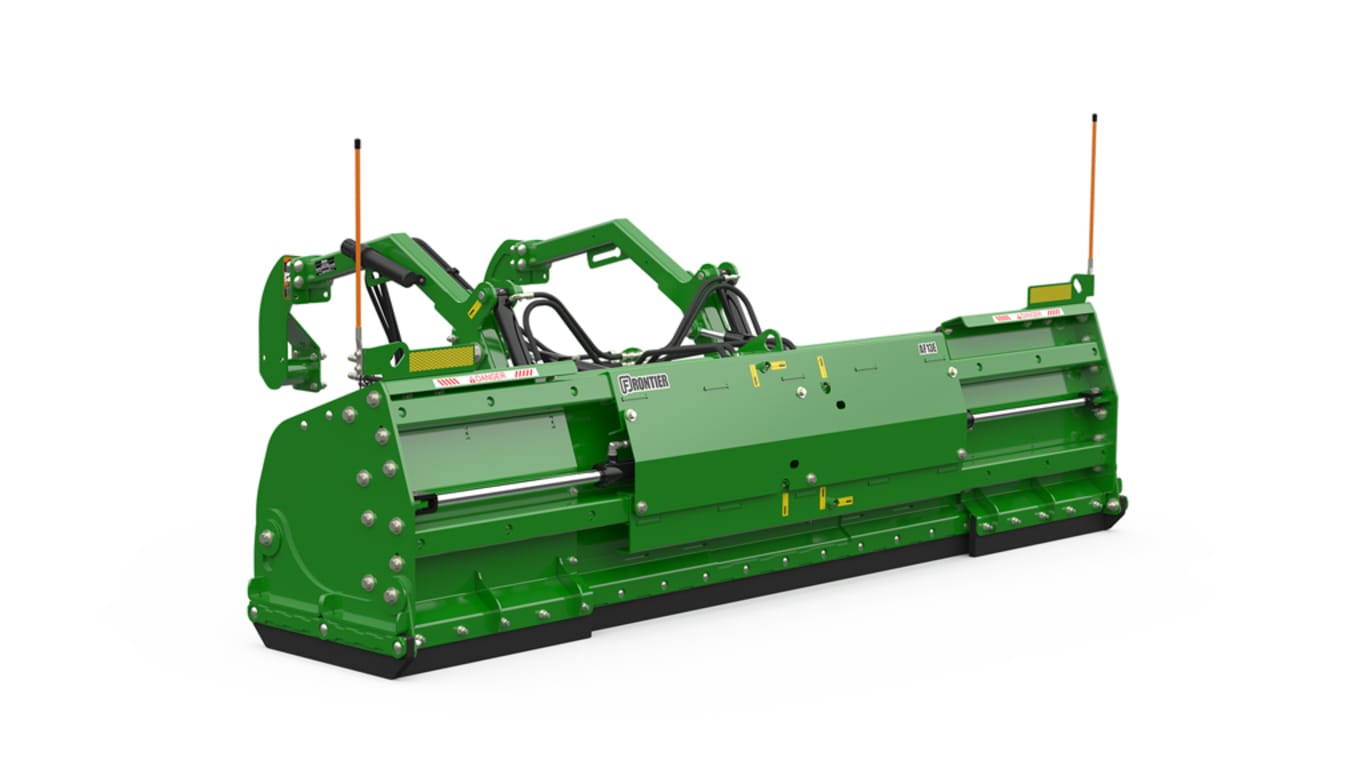

AF13E FRONT BLADE

Reduce the number of passes and pull snow from enclosed spaces, the AF13E Series Front Snow Blade makes quick work of snow-removal jobs. Using hydraulics to expand the blade horizontally, the AF13E blade has 6-to-10’ of working width, creating professional-grade results in less time.

The AF13E Series Front Snow Blade comes equipped with a front blade lift system allowing the snow blade to articulate up to 10°. Providing increased capacity and functionality, over loader-mounted blades, the lift mounts directly onto the loader-mount locations and tractor frame. The hydraulics utilize the dual mid-SVC to expand and contract the blade, eliminating the need for third function and saving costs. Sitting close to the tractor frame operators will also have improved visibility to the snow blade and snow.

Designed for ultra-low temperatures, the AF13E hydraulic hoses use ultra-low temperature resistant synthetic rubber.

Pull snow out of enclosed areas and away from objects with the inverted blade on the AF13E Expandable Front Snow Blade. The inverted blade has the capability to reach snow that other blades cannot such as, up close to buildings, garage doors, walls, and other enclosed structures.

Helping to reduce harsh contact and surface markings, the tivar cutting edge that comes standard on the AF13E, is the ultimate choice for a range of surface types, including fragile ones such as paved stone.

Communized cylinder components make serviceability easier than ever.
